Peruzzo Fox-S Series Center Mounted,
Left & Right Side Offsetable Flail Mowers

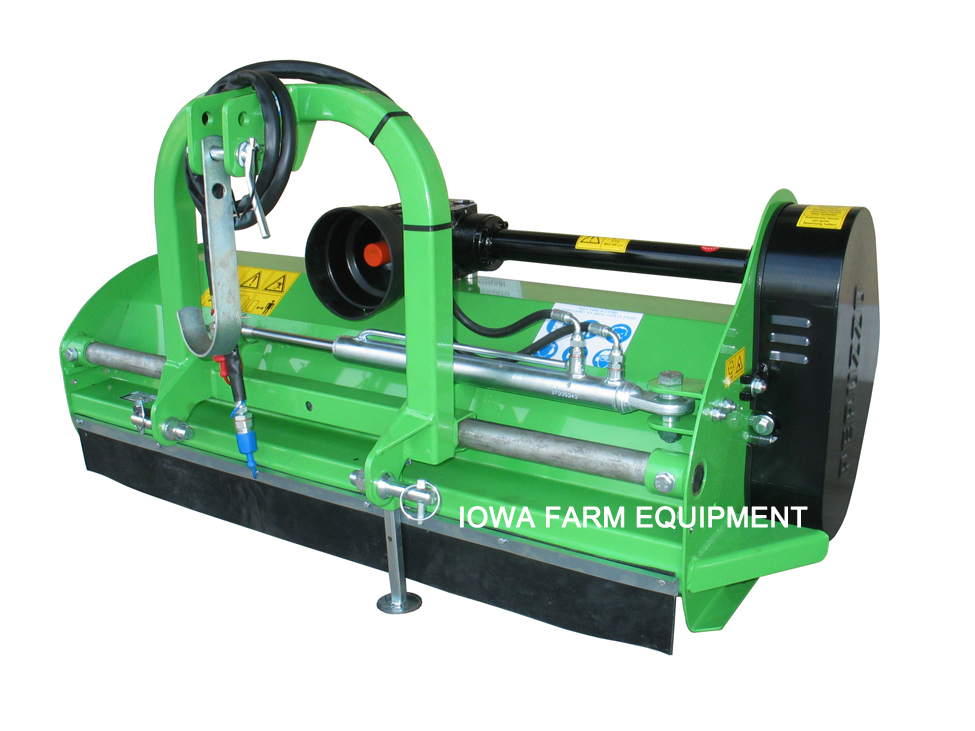

Front View Of The Fox-S Flail Mower With Hydraulic Offset & Two Top Link Connection Points: One Rigid, One Floating!

Peruzzo Fox-S 3-Point, Flail Mowers Suitable For Compact & Sub-Compact Tractors
Peruzzo’s Fox-S Series Flail Mowers are Engineered to Produce Excellent Results in Any Application: For Fine, Carpet Like Grooming & Manicuring of Professional & Commercial Turf, as well as Mowing in the Most Demanding, Tallest & Thickest Stands of Vegetation! With It’s Universal Design, We Have Golf Course Customers Grooming Fairways, Mowing the Rough & Verti-Cutting with the Same Mower! We Also Have Customers Grooming & Dethatching Large Estate & Acreage Lawns, Other Customers Mowing & Grooming Livestock Pastures, Others Shredding ‘After Harvest’ Produce Residue & Cover Crop Termination, as well as Some Just Finish Mowing Their Large Lawns! To Achieve as Even, Flat & Level Cut as Possible, Consider Using The Front Gage Wheels & Hammer Blades with the Top Link Attached to the Oval Pin Hole!

Fox-S 1400 Flail Mower Shown with Optional Front Gage Wheels & Top Link Attached to the Oval Pin Hole!

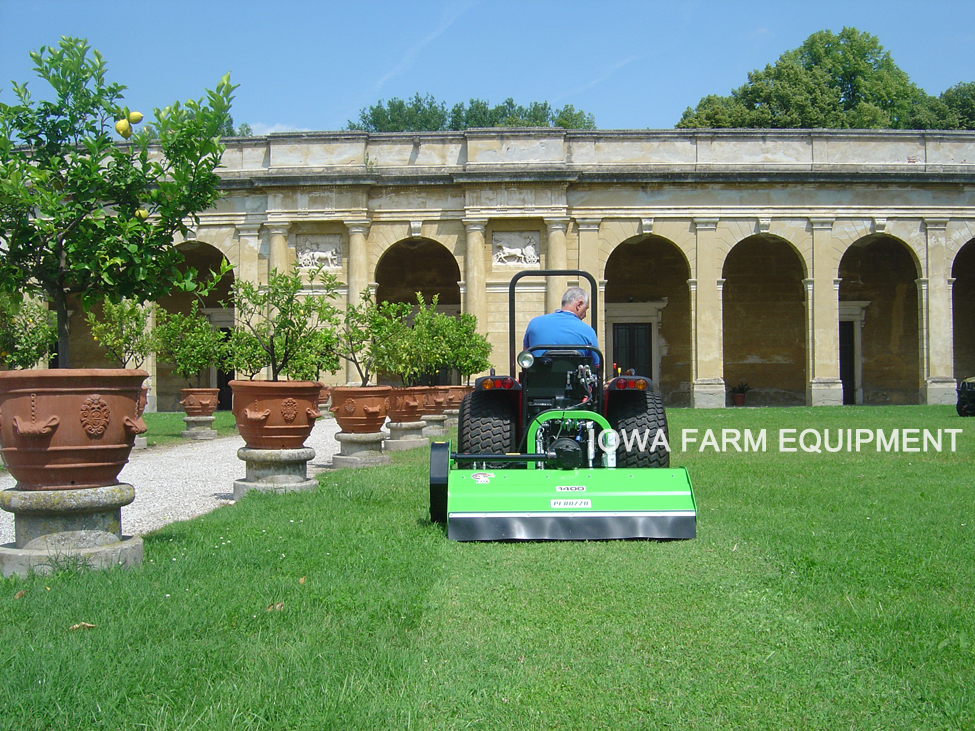

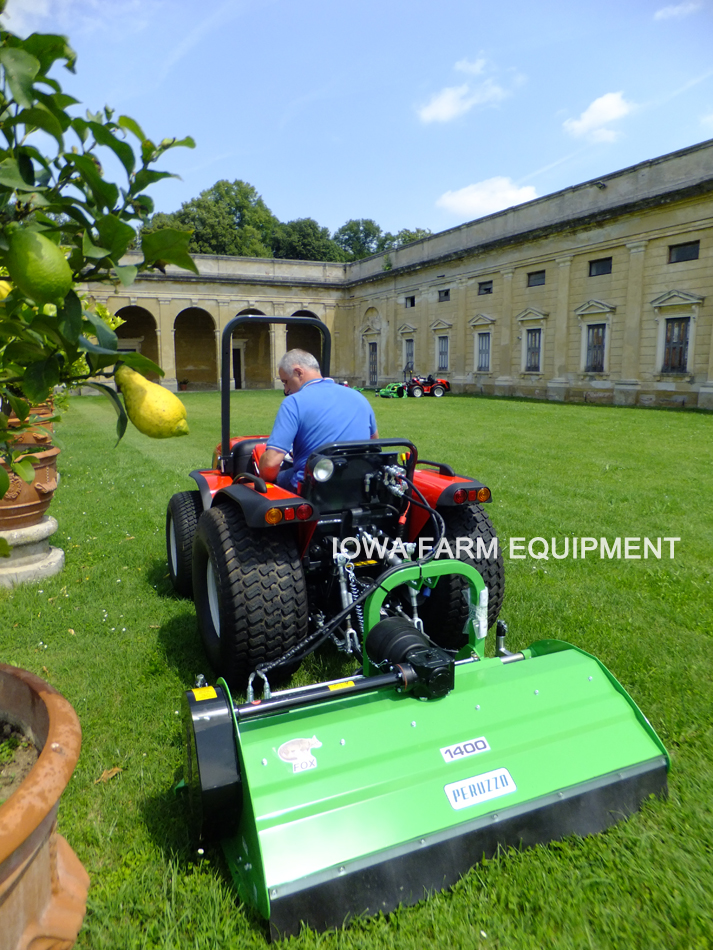

Fox-S 1400 Flail Mower Shown Finish Mowing A Public Green Space In The Centered Position

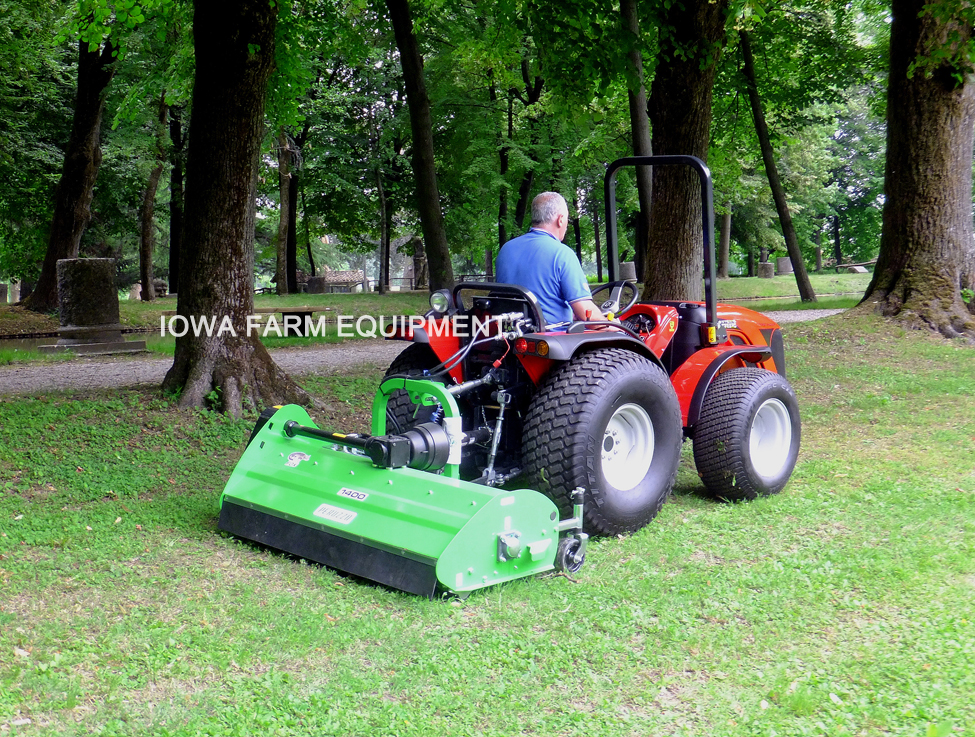

Fox-S 1400 Flail Mower Shown Grooming A Commercial Lawn Area In The Left Offset Position:
Fox-S Series Flail Mowers Can Be Offset Left or Right!

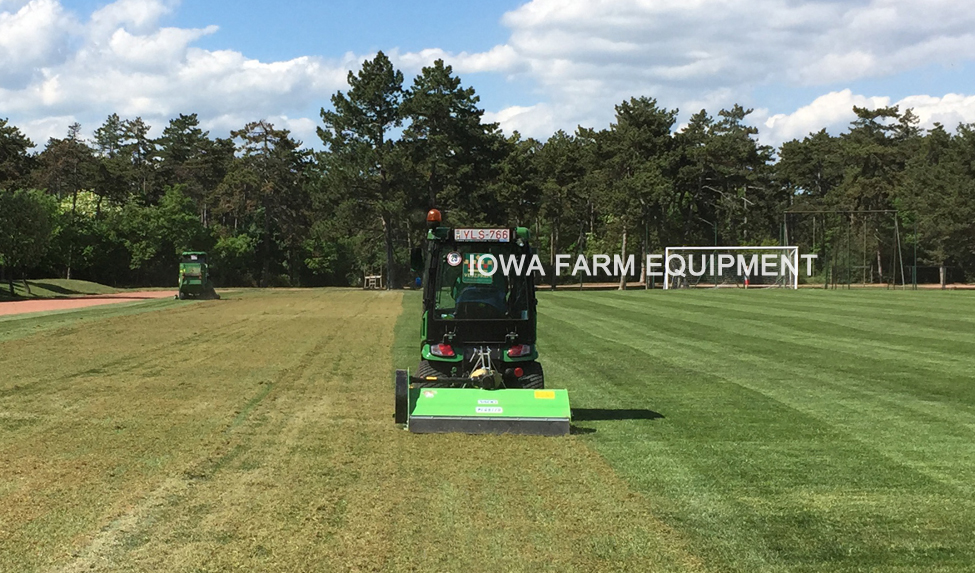

Fox-S 1400 VertiCuttting & Dethatching Athletic Field Turf
FEATURES
Verti-Cutting Recommendations
FOX-S SERIES SPECIFICATIONS
MODEL FOX-S 1400 FOX-S 1600
Horsepower 20 - 25HP 20 - 30HP
Working Width 55" 60"
Offset Distance 8" Left or Right

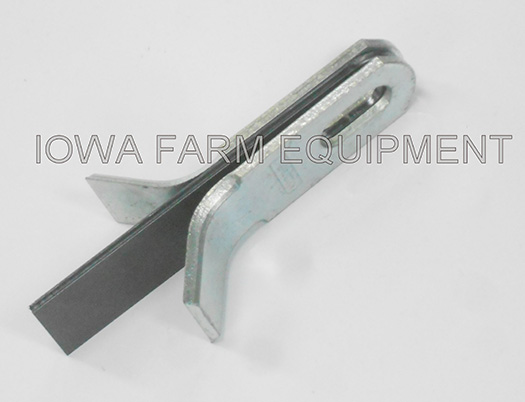

Quantity of 'Y' Blades 88 100
Quantity of Hammer Blades 44 50
Weight 426 lbs. 463 lbs.
RPM 540
Overall Width 63" 71"
Overall Length 36"
Overall Height 31"
FOX-S SERIES SPECIFICATIONS
MODEL FOX-S 1400 FOX-S 1600
Horsepower 20 - 25HP 20 - 30HP
Working Width 55" 60"
Offset Distance 8" Left or Right
Quantity of 'Y' Blades 88 100
Quantity of Hammer Blades 44 50
Weight 426 lbs. 463 lbs.
RPM 540
Overall Width 63" 71"
Overall Length 36"
Overall Height 31"
Specifications & Designs Are Subject to Change Without Notice
