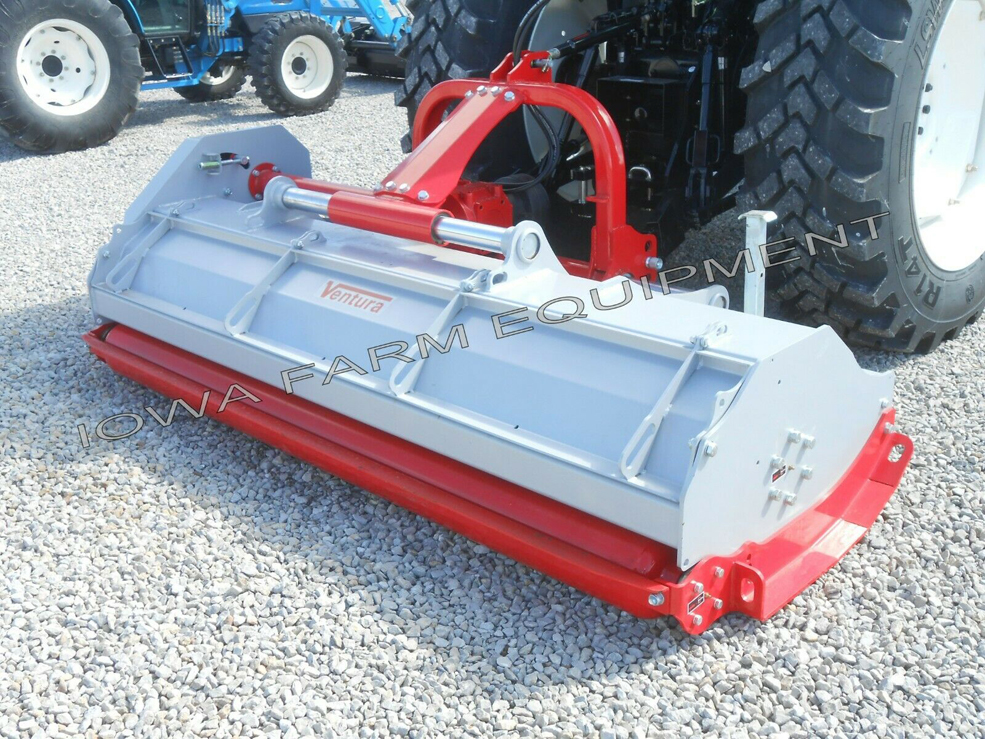

Ventura ‘MPT’ Series 3-Point Offset Flail Mowers with Openable Rear Gate
Ventura 'MPT' Series, 3-Point Flail Mower/Mulcher with Openable Rear Gate & Left or Right Hydraulic Offset!
Ventura’s Flail Mowers Are Safe & Efficient, and Provide Excellent Single Pass Rough Cutting Results in the Worst Conditions & Excellent Single Pass Results in Finish Mowing & Grooming Applications…With The Same Mower & Blades!
Ventura Flail Mowers Always Have the Highest Population of Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
Ventura Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Premature Wear of the PTO Brake!

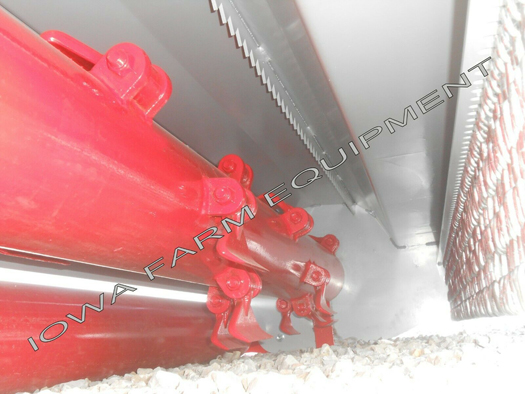

'Under Deck Mulching Grating' Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Under Deck Grating Is Integrated With The Protective (Internal) Double Skin.

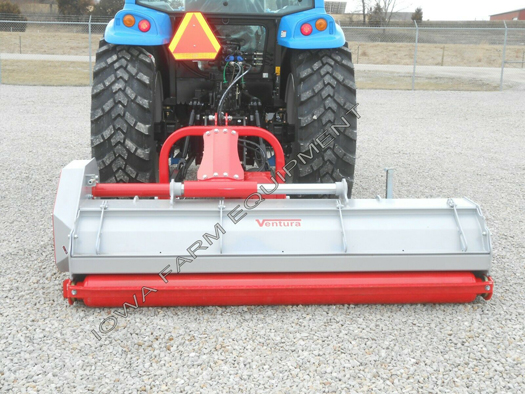

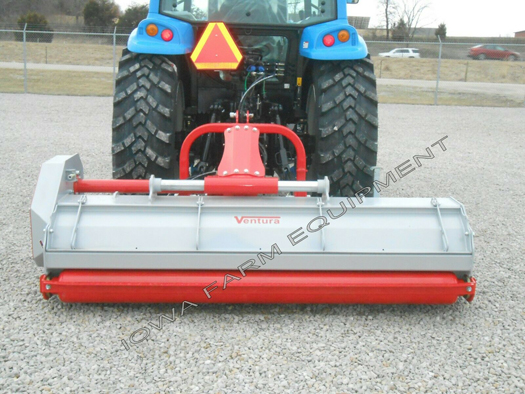

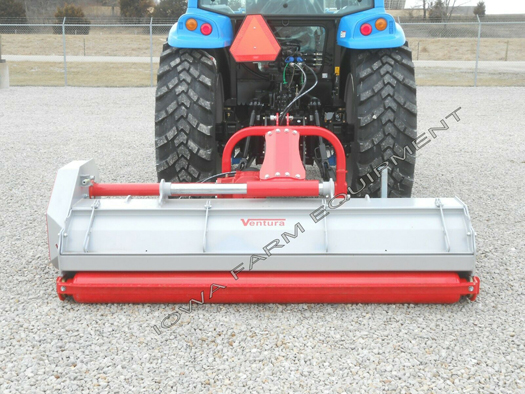

12" Left & Right Side Hydraulic Offset Positioning Can Be Done On-The-Fly!
Openable Rear Gate Allows Easy Service Access.
This is an Excellent Option For Visual Inspection & Service Access w/o Hoisting or Getting Under the Deck!
Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If you are Mowing along a fenceline, treeline, building, etc., instead of getting your entire Tractor along side of the Fence or Building (and risk scraping your Tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), you can simply keep the Offset part of the Mower close to the edges you want to mow and prevent any damage to the Tractor or the trees, fencing, walls, etc. Snagging posts, trees or other secured objects can also damage the 3-Point linkage on the Mower or even the pull arms & top link of your Tractor.
Much Better Visibility: If the edge of any Mower is flush with the sidewall of your tractors tire, forget about visibility! You will be cutting with your tractor tire as a 'guide', which is ok in open areas, but again, when you are Mowing up against obstacles, you want visibility, and the Offset feature will provide that. It will also eliminate the need to look back over your shoulder to see the Mower Deck. A simple glance to your right gives you visibility of the outer mowing edge.
Ventura Flail Mowers Provide a Much Better Cut Than Standard Rotary Mowers, Plus With the 'Solid Cast Hammer' Blades on This Flail Mower, You Can Cut 4" Diameter Material & Get a Very Good Finish Cut Too!
Ventura Flail Mowers Are The Safest & Most Efficient Mowers Available:
With Ventura Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They’re the Easiest for You & Your Tractor to Handle! Plus, the Superior ‘Single-Pass’ Cut of Ventura Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!

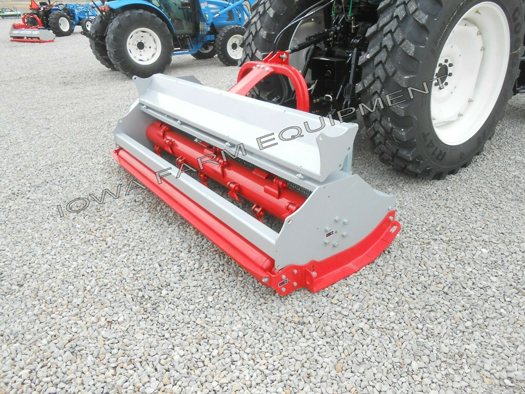

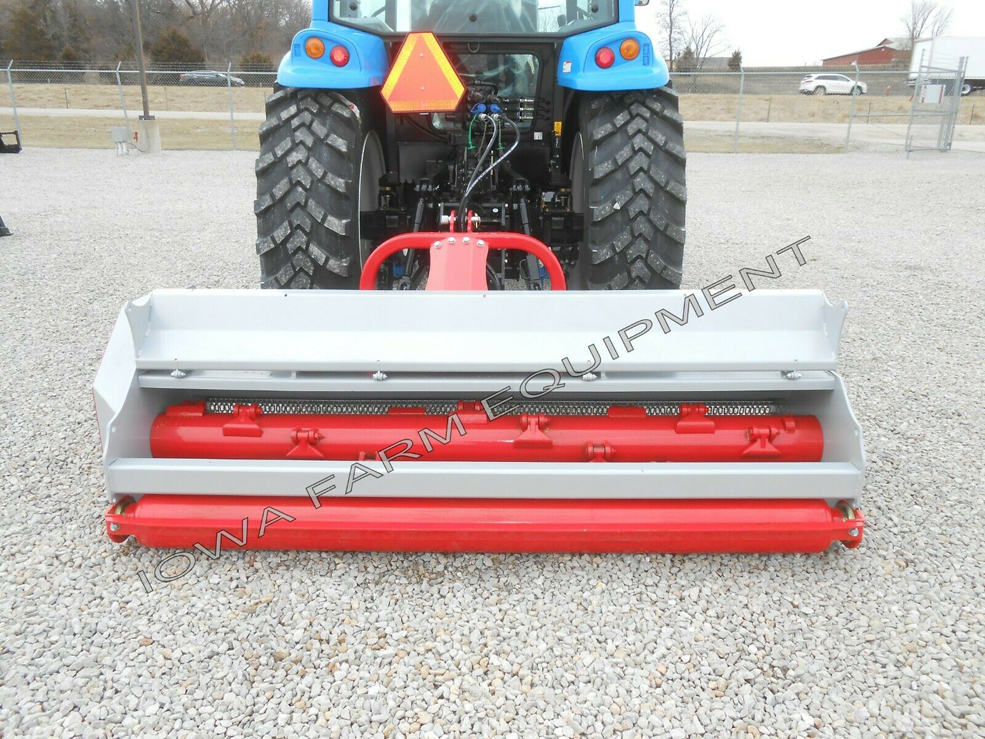

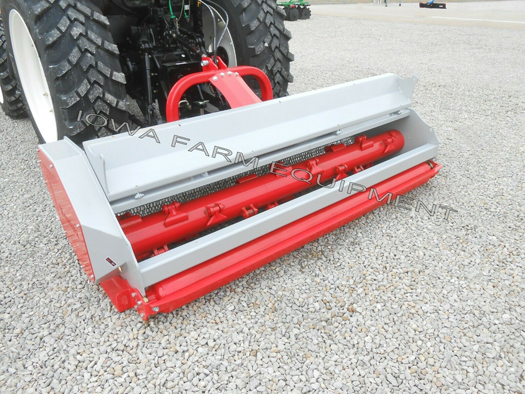

Ventura M220 Flail Mower With Rear Gate Opened
NOTE: Ventura Mowers Ship Factory Assembled & Ready To Use! This Means No Assembly Headaches From Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters & No Waiting Until It's Assembled Before First Use!
MPT SERIES SPECIFICATIONS
MODEL
MPT220
MPT240
MPT260
MPT280
Horsepower
70-100HP
80-110HP
85-120HP
90-130HP
RPM
540
Mowing Width
87"
96"
102"
110"
Overall Width
96"
104"
112"
120"
Overall Depth
39"
Overall Height
35"
Number of Hammer Style Flail Blades
18 Large Hammers
18 Large Hammers
20 Large Hammers
22 Large Hammers
Cutting Capacity
4"
Hydraulic Offset
18.5"
24"
24"
28"
CAT Hitch
CAT II
CAT II
CAT II
CAT II
Weight
1,631 lbs.
1,742 lbs.
1,863 lbs.
1,995 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
MPT SERIES SPECIFICATIONS
MODEL
MPT220
MPT240
MPT260
MPT280
Horsepower
70-100HP
80-110HP
85-120HP
90-130HP
RPM
540
Mowing Width
87"
96"
102"
110"
Overall Width
96"
104"
112"
120"
Overall Depth
39"
Overall Height
35"
Number of Hammer Style Flail Blades
18 Large Hammers
18 Large Hammers
20 Large Hammers
22 Large Hammers
Cutting Capacity
4"
Hydraulic Offset
18.5"
24"
24"
28"
CAT Hitch
CAT II
CAT II
CAT II
CAT II
Weight
1,631 lbs.
1,742 lbs.
1,863 lbs.
1,995 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
