Ventura Trim Professional Series Ditch Bank Flail Mowers

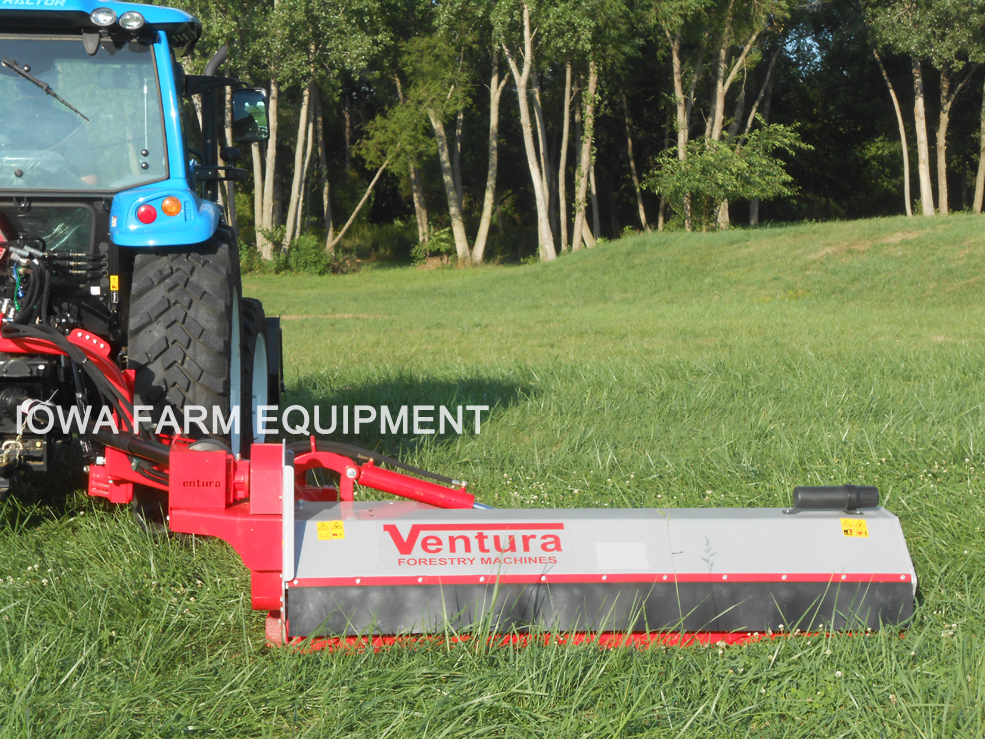

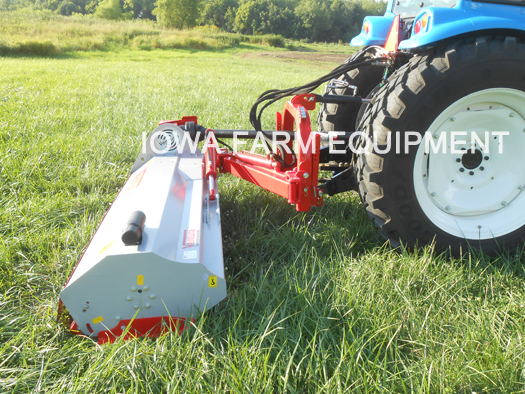

Ventura Trim 221E Ditch Bank Flail Mower
Ventura’s Trim Series, Hydraulically Articulated Ditch Bank Flail Mowers for 40-120HP Tractors Are Durable & Rugged Machines Loaded with Many Standard Features! They Provide Superior Results with Single Pass Efficiency, and Safe & Comfortable Operation!
Ventura’s Flail Mowers Are Safe & Efficient, and Provide Excellent Single Pass Rough Cutting Results in the Worst Conditions & Excellent Single Pass Results in Finish Mowing & Grooming Applications…With The Same Mower & Blades!
Offset & Head Positioning Functions Operate Hydraulically On The Fly!

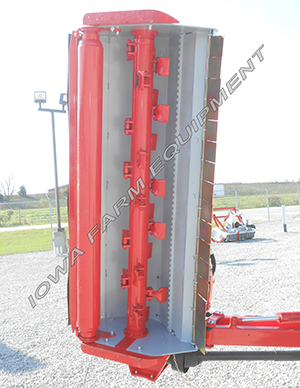

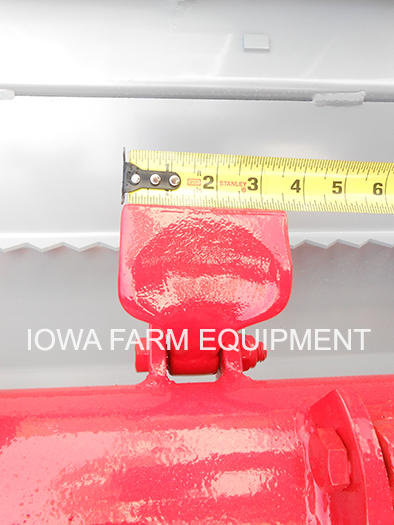

Ventura Flail Mowers Are Always Highly Populated with Very Large 'Forged & Hardened' Steel Hammer Blades to Provide the Best Possible Cut & Reduce the Burden on Your Tractor!
Ventura Mower Gearboxes Include an Over-Running Clutch, Which Provides Two Advantages:
First, Easy Alignment & Attachment of the Mowers PTO Shaft to the Tractors PTO Shaft:
The O.R. Clutch Enables you to Freely Spin the PTO Shaft & Gearbox for Alignment!
Second, Smooth Shut Down:
The O.R. Clutch Allows the Mower Gearbox to Free Wheel to a Stop, Eliminating Abrupt Shutdowns & Premature Wear of the PTO Brake!
'Under Deck Mulching Grating' Ensures Reduction of Larger Clippings & Further Reduces the Smaller Ones.
Under Deck Grating Is Integrated With The Protective (Internal) Double Skin.
Offset & Head Positioning Functions Operate Hydraulically.
With the External Gearbox & Unique Hitch Configuration of Ventura Mowers, Expect to Get the Most Right Side Reach Possible!

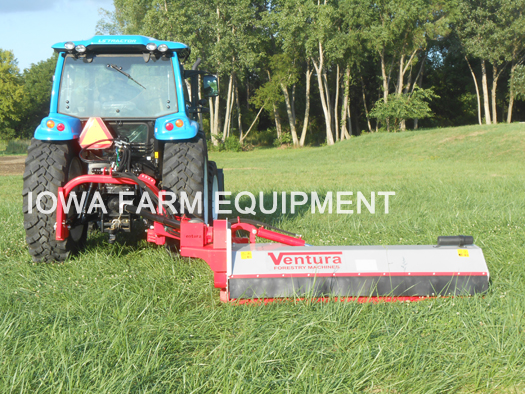

Multiple Advantages of This Offsetable Mower Over Static, Center Mounted 3-Point Mowers:
If you are Mowing along a fenceline, treeline, building, etc., instead of getting your entire Tractor alongside of the Fence or Building (and risk scraping your Tractor tires or snagging & damaging trees, posts, fencing, buildings, etc.), you can simply keep the Offset part of the Mower close to the edges you want to mow and prevent any damage to the Tractor or the trees, fencing, walls, etc. Snagging posts, trees or other secured objects can also damage the 3-Point linkage on the Mower or even the pull arms & top link of your Tractor.
Much, Much Better Visibility: If the edge of any Mower is flush with the sidewall of your tractors tire, forget about visibility! You will be cutting with your tractor tire as a 'guide', which is ok in open areas, but again, when you are Mowing up against obstacles, you want visibility, and the Offset feature will provide that. It will also eliminate the need to look back over your shoulder to see the Mower Deck. A simple glance to your right gives you visibility of the outer mowing edge.

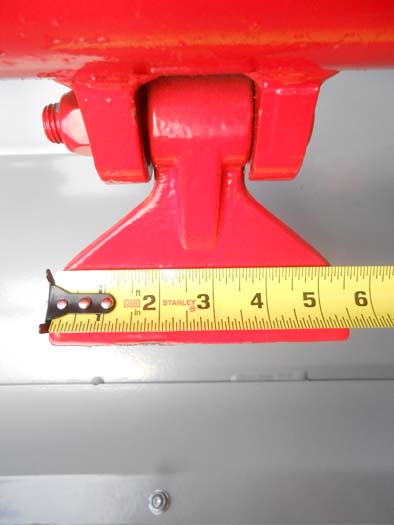

Ventura Flail Mowers Provide a Much Better Cut Than Standard Rotary Mowers, Plus With the 'Solid Cast Hammer' Blades on This Flail Mower, You Can Cut 4" Diameter Material & Get a Very Good Finish Cut Too!
Ventura Flail Mowers Are The Safest & Most Efficient Mowers Available:
With Ventura Flail Mowers, the Possibility of Discharging Dangerous Projectiles is Dramatically Reduced Compared to Conventional Rotary Mowers, and with the Reduced Deck Depth & Weight, They’re the Easiest for You & Your Tractor to Handle! Plus, the Superior ‘Single-Pass’ Cut of Ventura Flail Mowers Provides New Efficiencies by Eliminating Multiple Passes For Excellent Results!
Offset & Mower Head Positioning Functions Operate Hydraulically On The Fly!

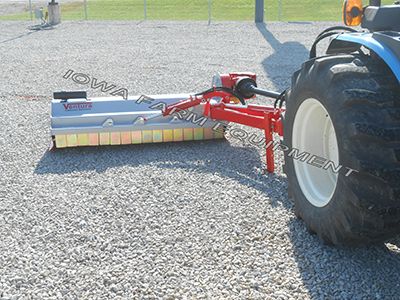

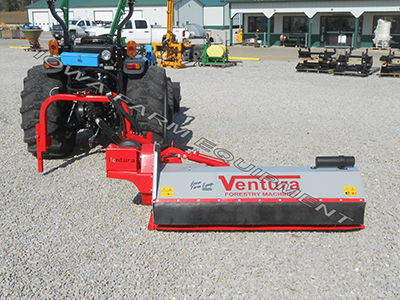

Ventura Trim 161E Ditch Bank Flail Mower

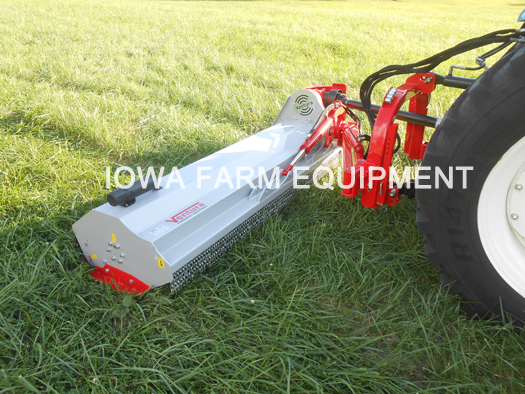

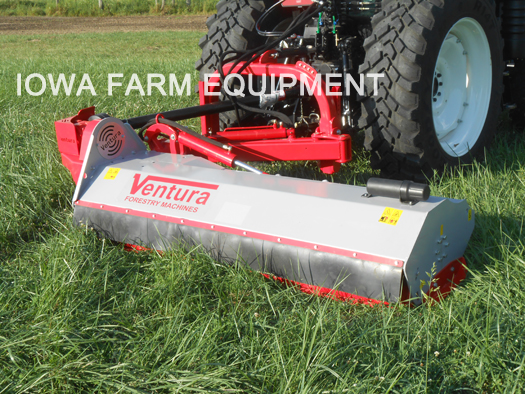

Ventura Trim 221E Ditch Bank Flail Mower

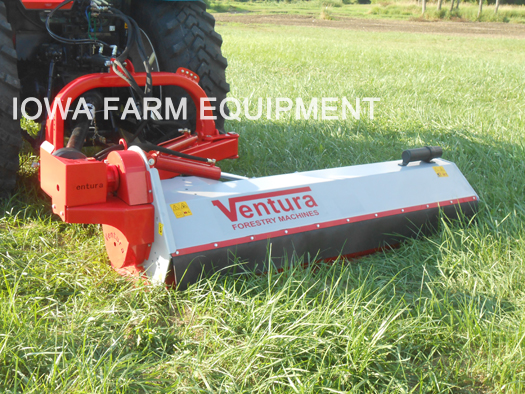

Ventura Trim 221E Ditch Bank Flail Mower
Ventura Trim 221E Ditch Bank Flail Mower
Ventura Trim 221E Ditch Bank Flail Mower
Ventura Trim 221E Ditch Bank Flail Mower
Ventura Trim 221E Ditch Bank Flail Mower
NOTE: Ventura Mowers Ship Factory Assembled & Ready To Use! This Means No Assembly Headaches From Poor Instructions, No Missing Parts & Associated Delays, No Special Tools, No Knuckle Busters & No Waiting Until It's Assembled Before First Use!
TRIM SERIES SPECIFICATIONS
MODEL
TRIM 161E
TRIM 181E
TRIM 201E
TRIM 221E
Horsepower
40-75HP
60-90HP
70-100HP
90-120HP
RPM
540
Mowing Width
63"
72"
79"
87"
Overall Width
79"
98"
106"
114"
Number of Hammer Style Flail Blades
20 Hammers
14 Large Hammers
16 Large Hammers
18 Large Hammers
Cutting Capacity
3"
4"
4"
4"
Max. Horizontal Reach (From Center of Tractor) To Outside Cutting Edge
8'-6"
10'-8"
11'-3"
12'

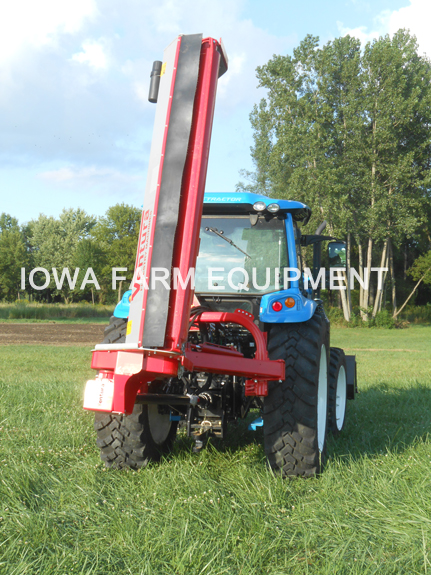

Max. Upward Angle
90°
Max. Downward Angle
60°
Hyd. Outlets Required
Two Sets
CAT Hitch
CAT I & II
CAT II
CAT II
CAT II
Number of Belts
3
4
4
4
Weight
1,023 lbs.
1,496 lbs.
1,540 lbs.
1,749 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
TRIM SERIES SPECIFICATIONS
MODEL
TRIM 161E
TRIM 181E
TRIM 201E
TRIM 221E
Horsepower
40-75HP
60-90HP
70-100HP
90-120HP
RPM
540
Mowing Width
63"
72"
79"
87"
Overall Width
79"
98"
106"
114"
Number of Hammer Style Flail Blades
20 Hammers
14 Large Hammers
16 Large Hammers
18 Large Hammers
Cutting Capacity
3"
4"
4"
4"
Max. Horizontal Reach (From Center of Tractor) To Outside Cutting Edge
8'-6"
10'-8"
11'-3"
12'
Max. Upward Angle
90°
Max. Downward Angle
60°
Hyd. Outlets Required
Two Sets
CAT Hitch
CAT I & II
CAT II
CAT II
CAT II
Number of Belts
3
4
4
4
Weight
1,023 lbs.
1,496 lbs.
1,540 lbs.
1,749 lbs.
Weights are Less Pallets, Crates & PTO Shaft.
Specifications & Designs Are Subject to Change Without Notice
